Technical Specification

Overview

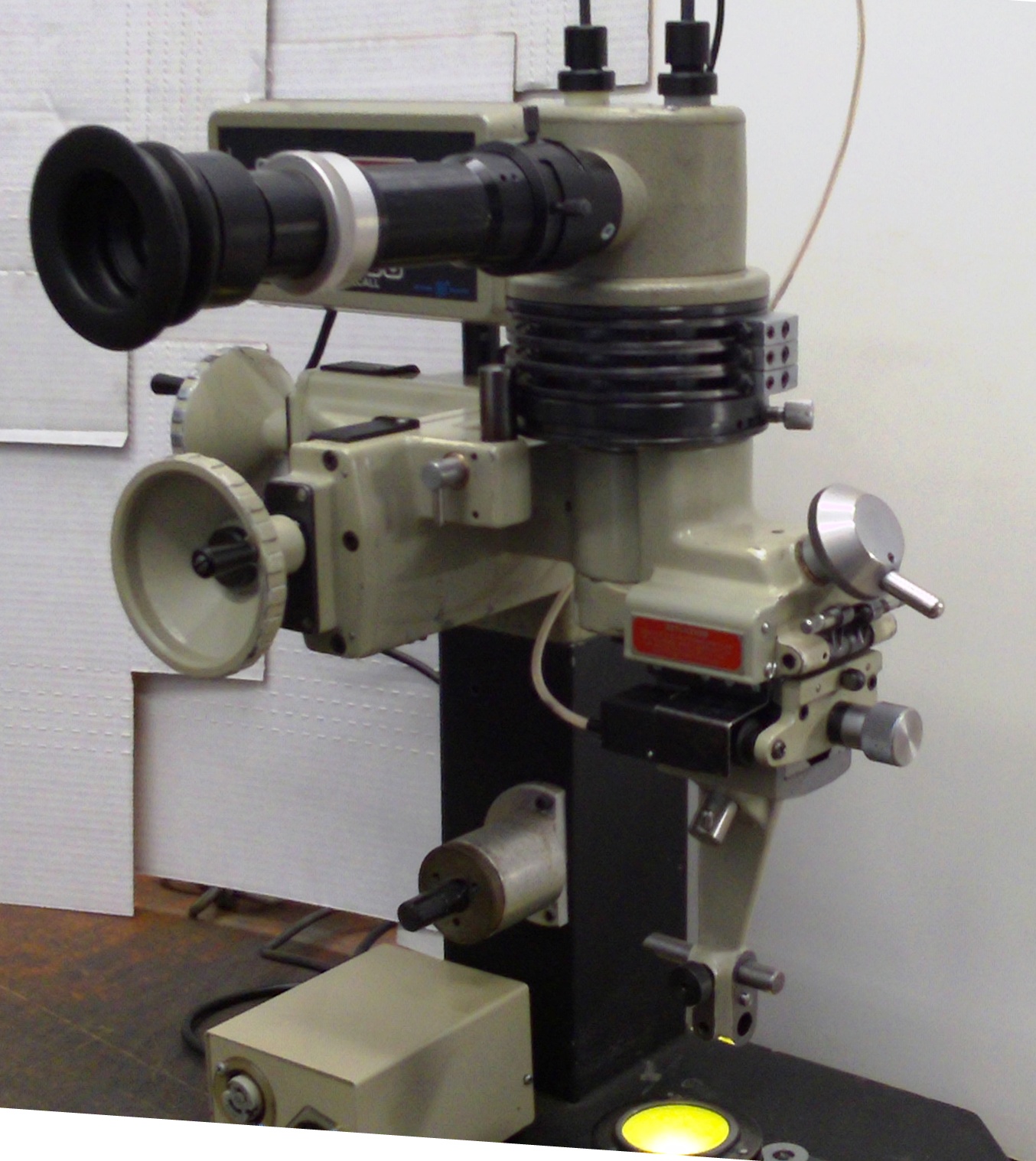

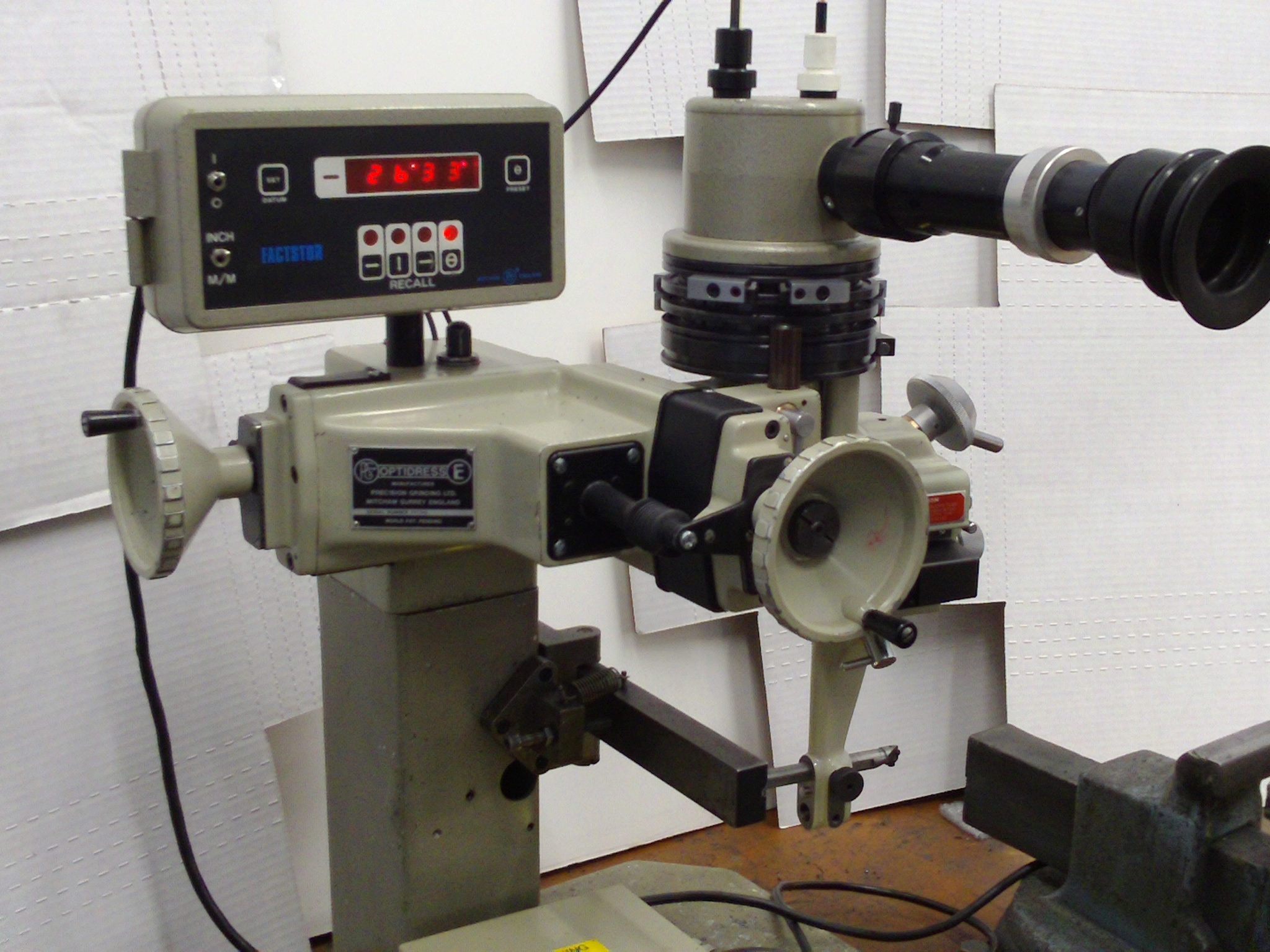

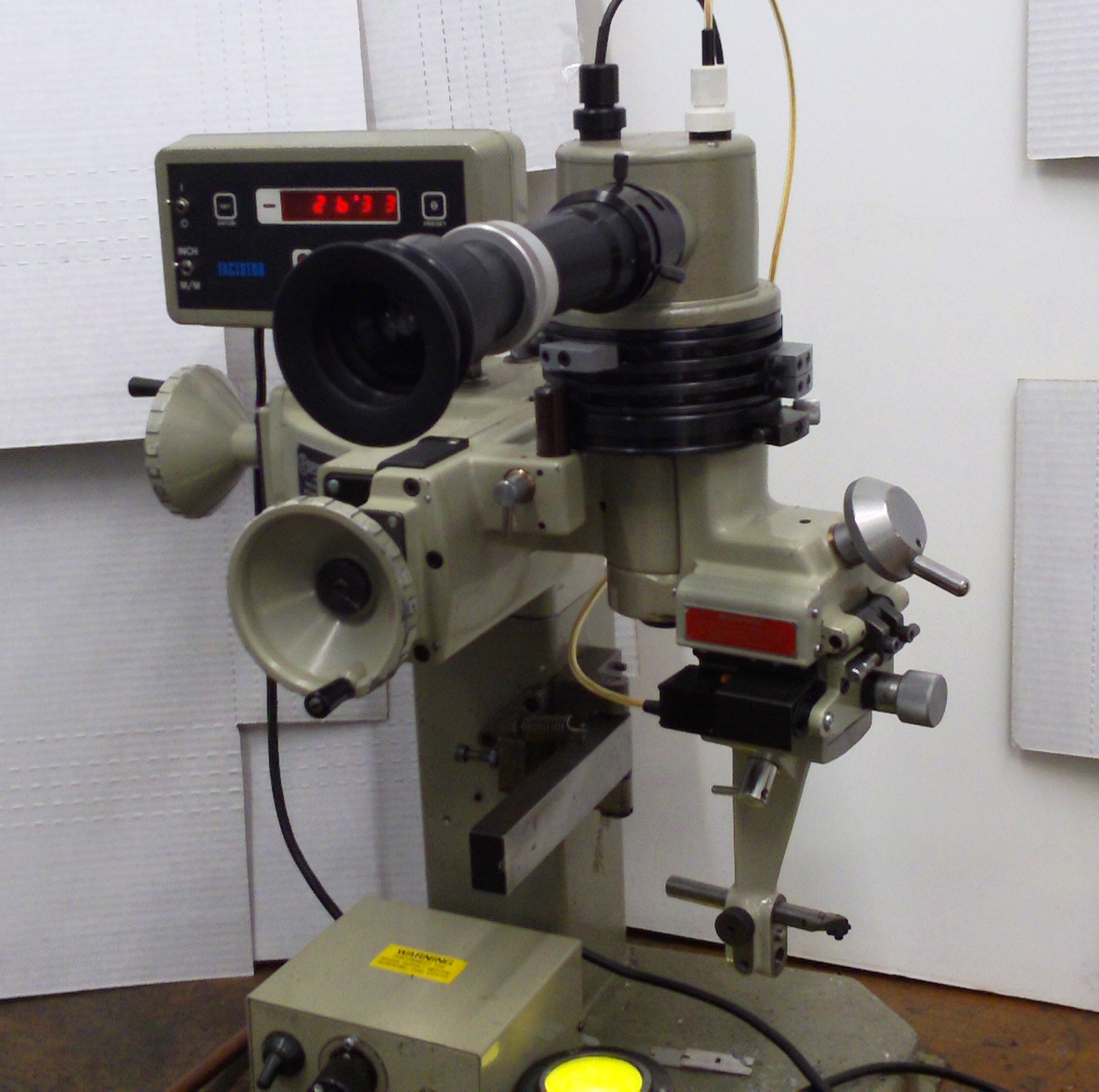

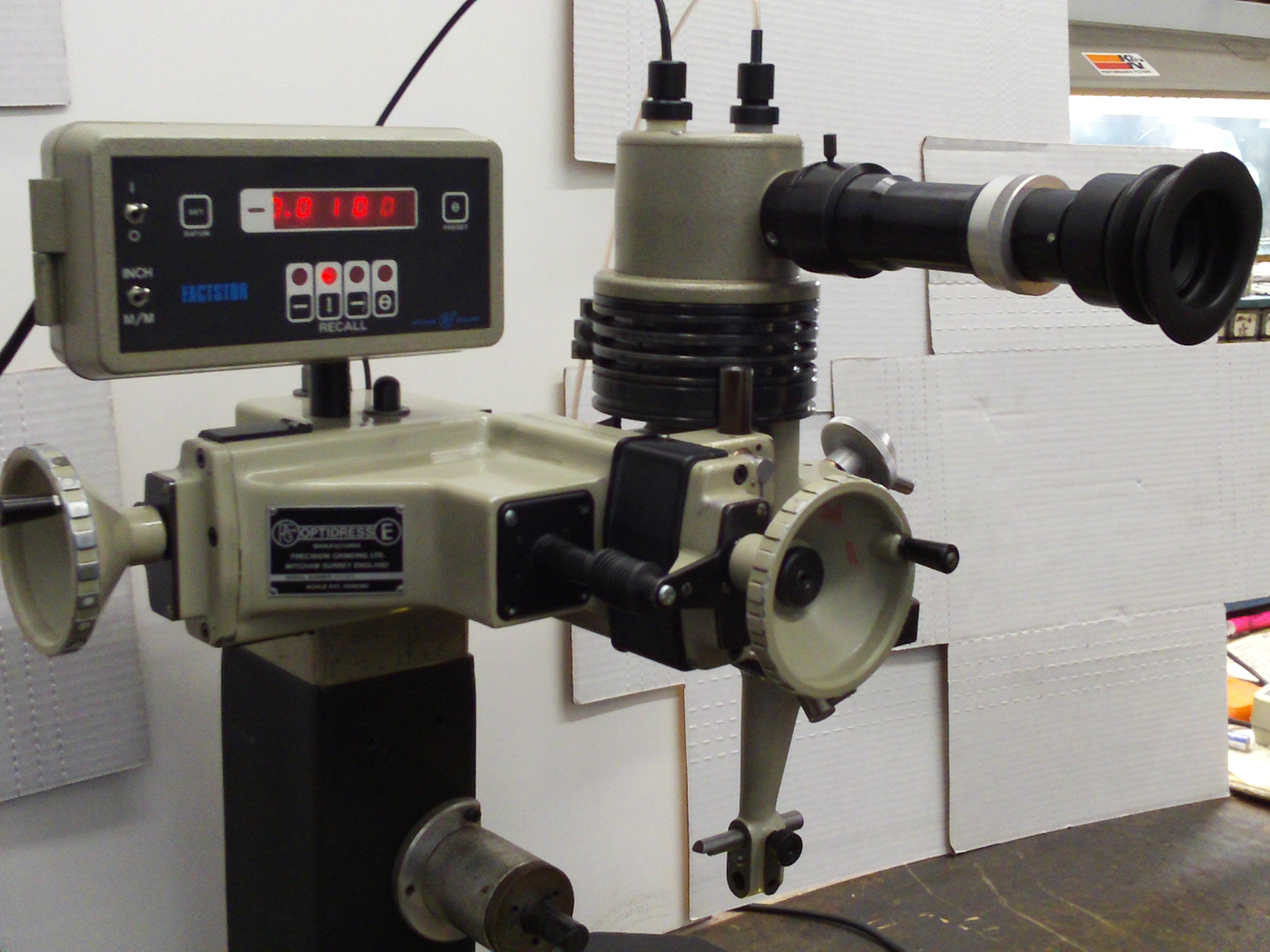

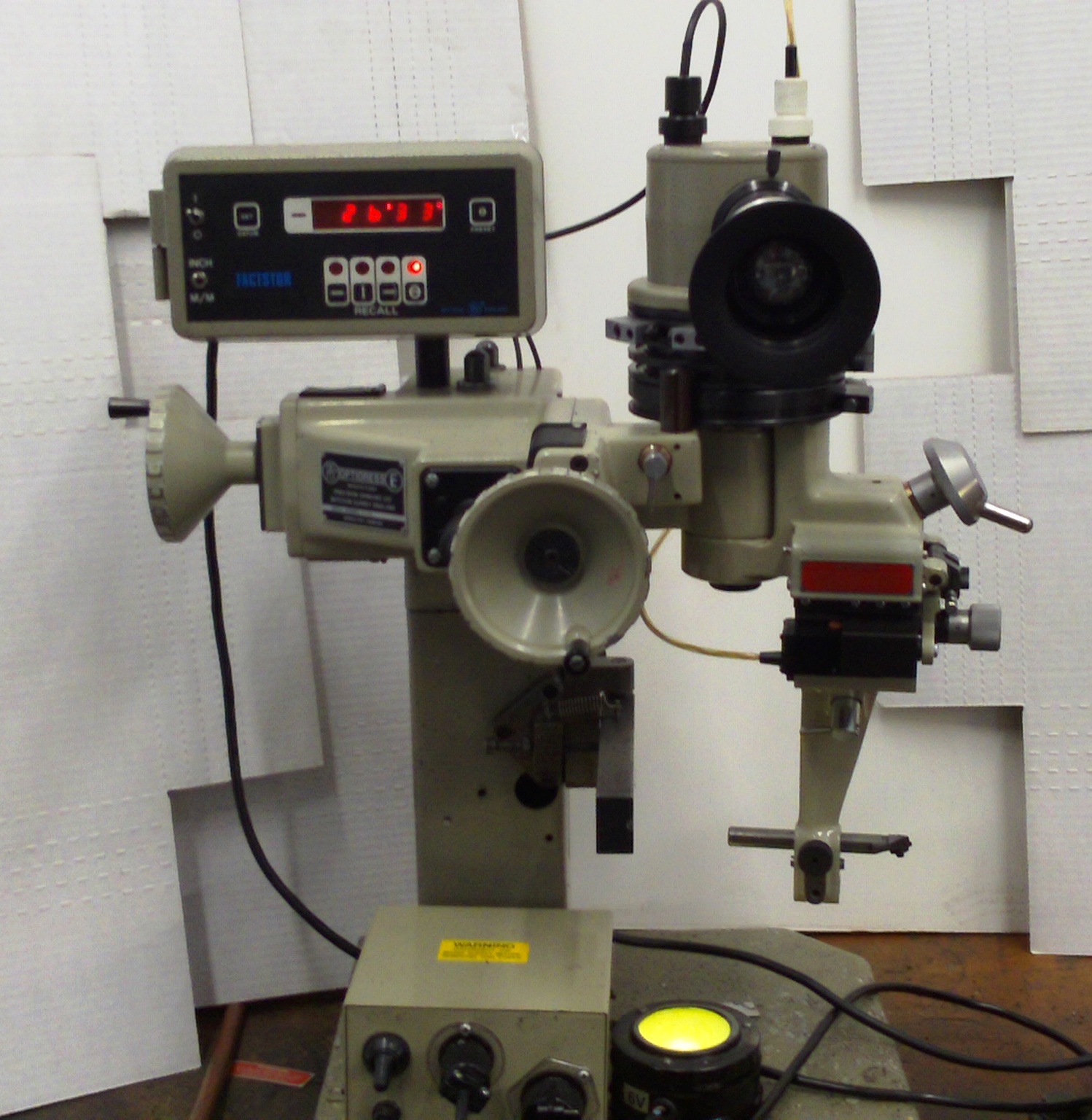

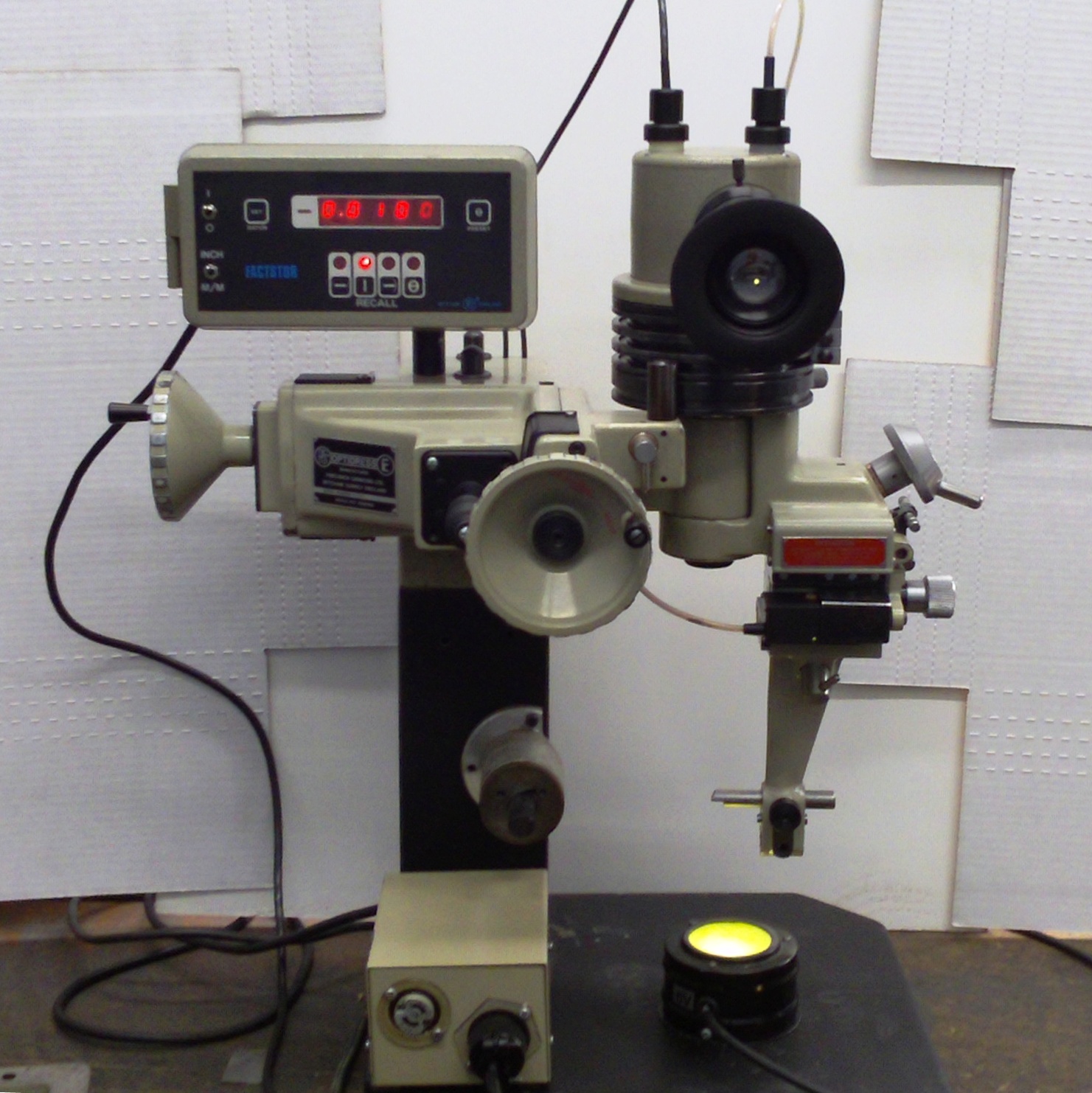

The Optidress E Form Wheel Dresser easily mounts to your surface grinder — without removing the job from the chuck. Reduce the chore of form wheel dressing to seconds instead of hours, and free your highly trained operators for other tasks.

Features
Tolerances to .0001”
Spindle-mounted — redresses wheel in seconds without interfering with standard operation
Multiple dressing in a single set-up — do a combination of angles and radii
Highly accurate — forms wheels to ± 0.0002”
Dress a wheel in under 3 minutes — redress it in seconds
Improves toolmakers’ skills as well as production times and accuracy
Most applications have a one-year payback
Proven design — thousands of units in use across the nation
