A FULL RANGE OF INNOVOATIVE GRINDING SOLUTIONS

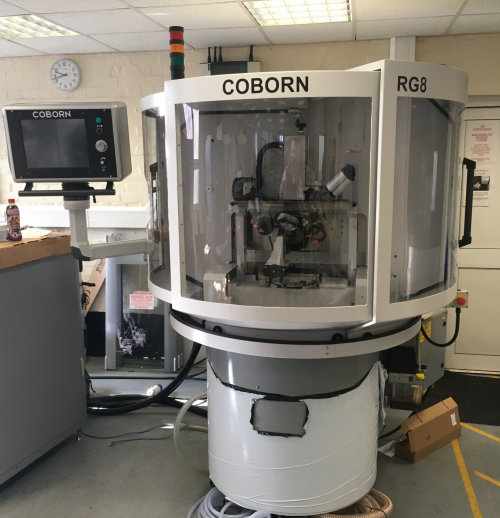

Fully Refurbished Coborn RG8 CNC, PCD & PCBN TOOL GRINDER

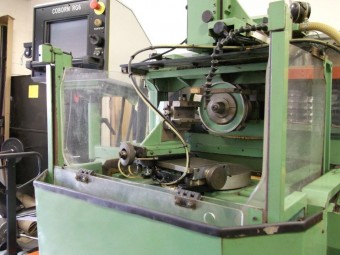

Fully refurbished in our Florida location and running the latest Coborn RG8 software This RG8 can be bought outright or you can trade-in your old Coborn RG6 machine. Or have your old RG6 upgraded to full RG8 specification including all new electrics and a full enclosure. See Gallery photos below
CALL OR EMAIL FOR DETAILS
Technical Specification
Area Specification
Machine dimensions (w x d x h) – 1520mm x 1270mm x 1980mm
Machine weight – 1350kg
CNC control system – CNC control with Intel i7 processor running Coborn .net software on a Windows platform
Grinding wheel spindle – 2.2kW 500 – 4000 rpm programmable
Grinding wheel – Ø 150mm – 220mm 6A2 different styles available on request
Dressing system – Coborn in-process dressing system

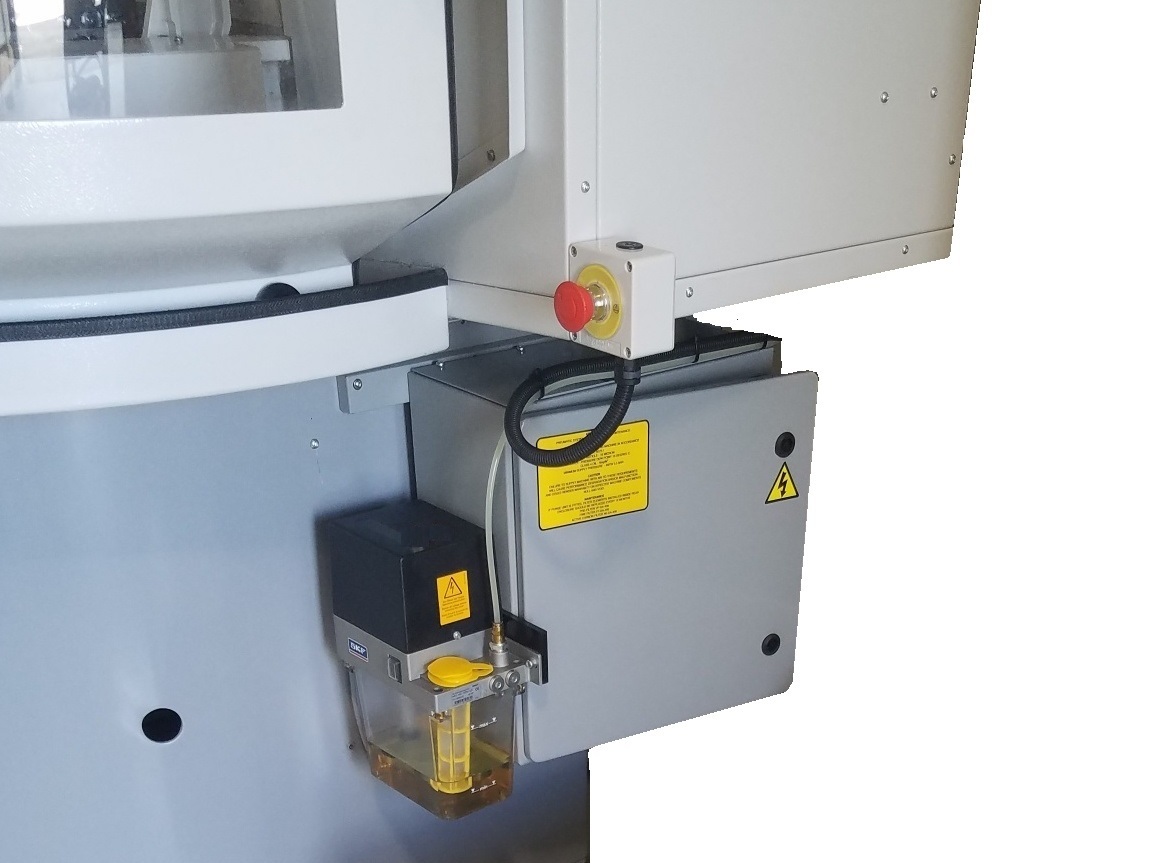

Lubrication – Centralised automatic lubrication system
Process measurement – Coborn integrated camera measuring system +/- 0.002mm resolution
Electrical requirements – 380/220 3phase 50/60 Hz 20Amps
Mechanical options – Rotary axis (RM), Work piece clamping systems (TH),
Software options – Peripheral / CAM grinding software,

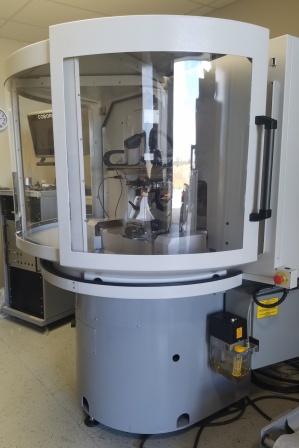

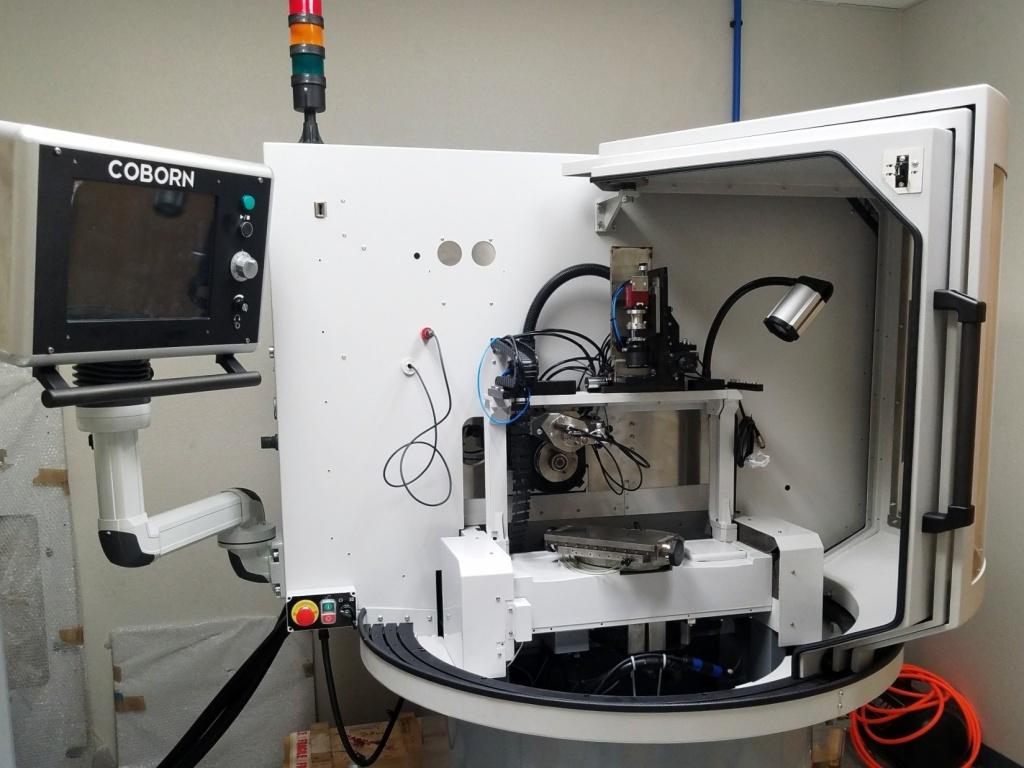

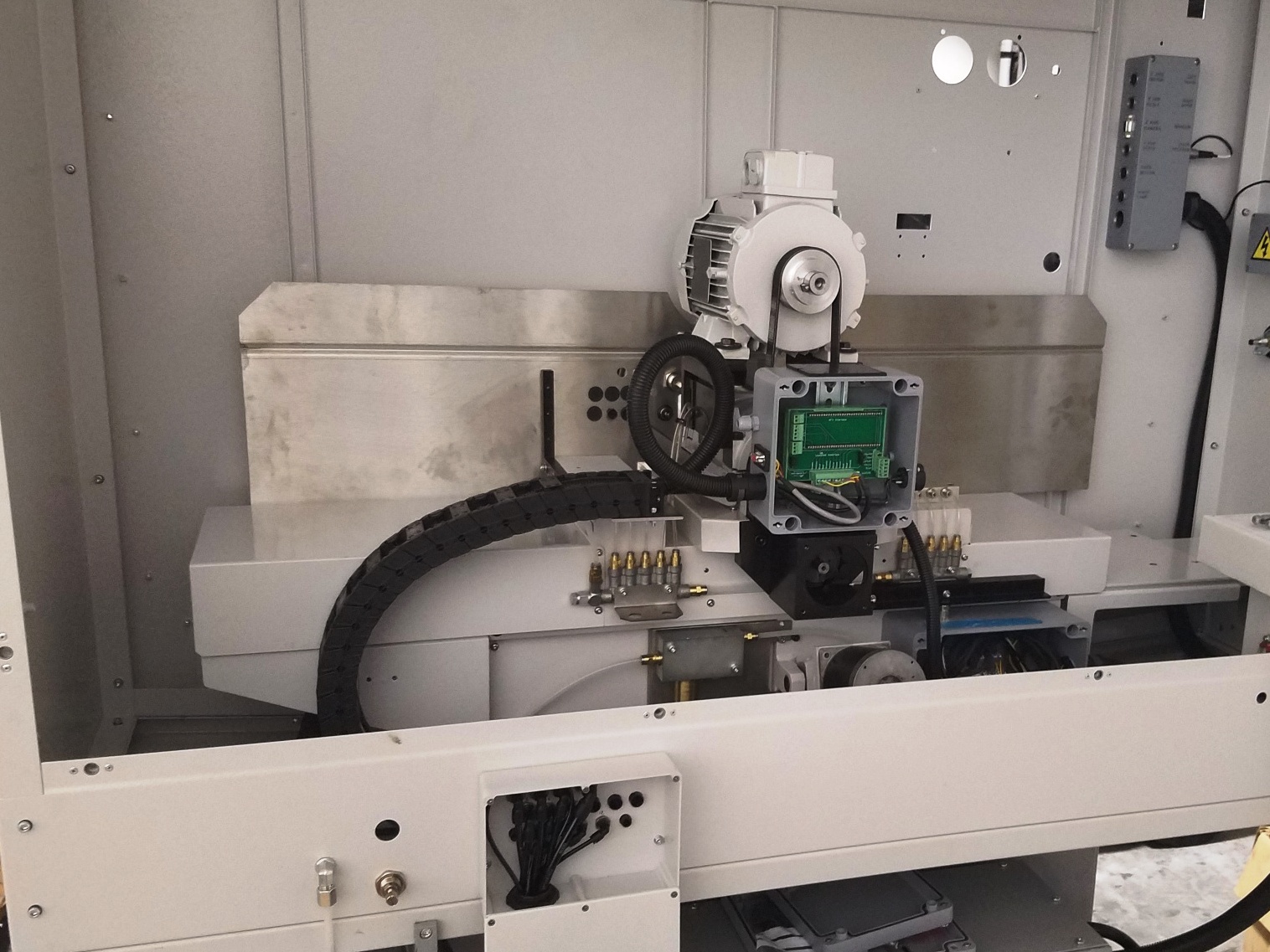

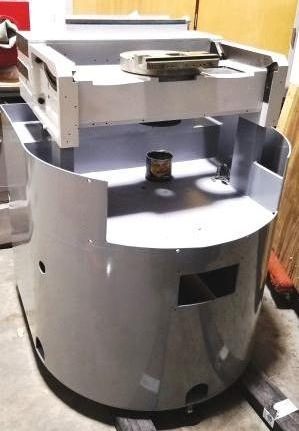

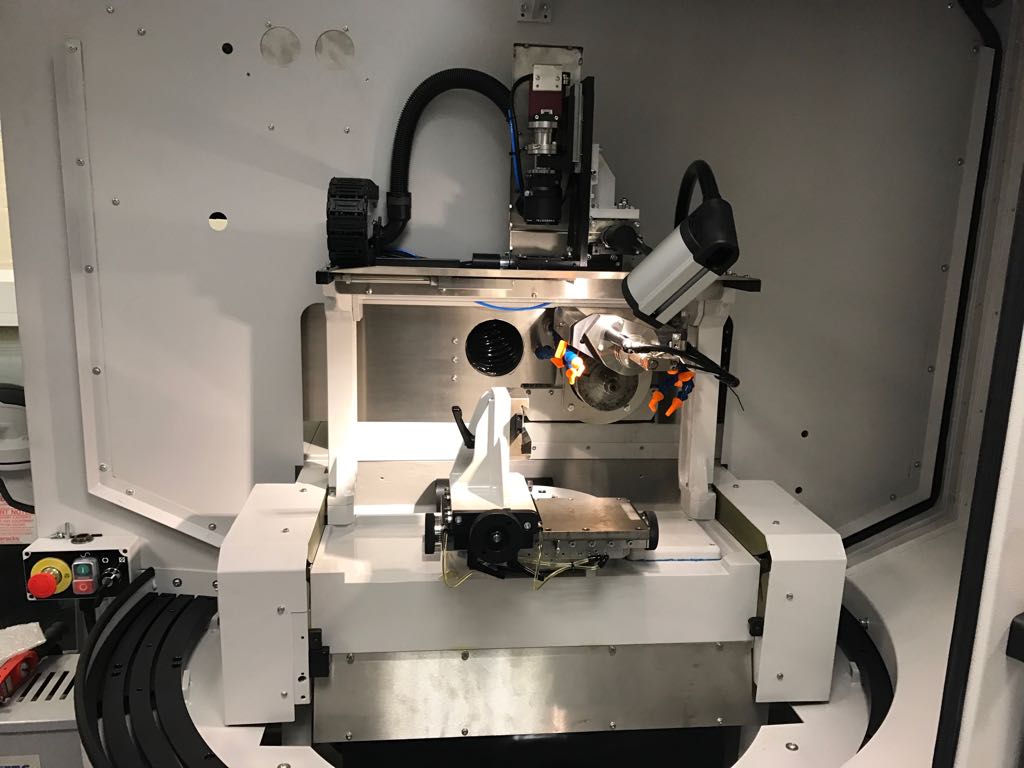

Gallery
